Street Lighting High Power LED PCB Module With 70 X 70 Degree Optical Lens

Brand Name : Sollente
Model Number : SOE-SL28W-LM70x70
Place of Origin : China
MOQ : 1 sets
Price : Negotiation
Payment Terms : T/T, Western Union, MoneyGram, PayPal
Supply Ability : 10000 pcs / week
Delivery Time : 6-14 working days
Packaging Details : Carton Box
Certification : Rohs
Product Name : Street Lighting High Power LED PCB Module With 70 X 70 Degree Optical Lens
Lens Size : L151.8*W95.4*H11.5mm
PCB Size : L132*W75*H1.6mm
Beam Angle : 70x70 degree
Match Led : Lumileds K2, Edison A-1 A-5 S5, Bridgelux chip Led
Material : Optical Grade PC
Efficiency : 91%
PCB circuit : 14 series 2 parallels or 7 Series 4 parallels
Led voltage : 3-3.6V
Lumen : 160-170 lm/W
Contact Now

Street Lighting High Power LED PCB Module With 70 X 70 Degree Optical Lens


Quick Details:

1. Dimension: L151.8*W95.4*11.5mm

2. Beam Angle: 70x70 degree

3. Match Led: High power led , K2 , P4

4. Materials : Optical Grade PC, Aluminm

5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, Led driver

6. Efficiency: >91%


Specifications:


Product NameStreet Lighting High Power LED PCB Module With 70 X 70 Degree Optical Lens
Model NoSOE-SL28W-LM70X70
Main parts28W Lens+ Silicone gasket + AL PCB mounting leds + LED driver (Meanwell Led driver is available)
Lens MaterialPC Optical
MOQ1pcs
Lens sizeL151.8*W95.4*11.5mm
PCB SizeL132*W75*H1.6mm , PCB could design as clients reuqest
Driver enclosureplastic or aluminum case for choice
PCB Circuit

14 series 2 parallel

Led details3-3.6V , 160-170 lm/w
CertificateROHS, SGS,CE
Quality guaranteeIf you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
Main marketEurope , South America , North America

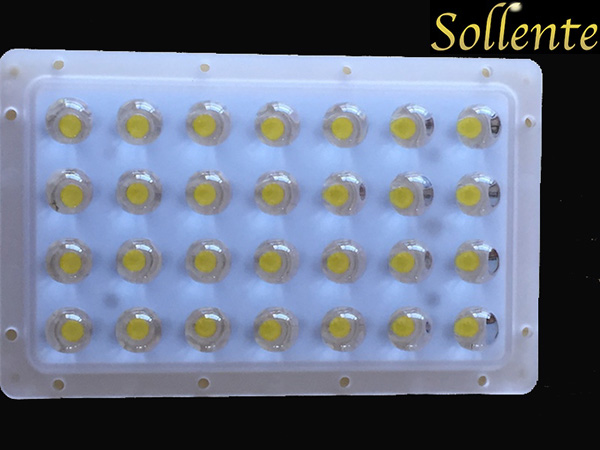

Led Tunnel Lighting Modules Pictures:


Led Tunnel Lighting Modules Lens Drawing:

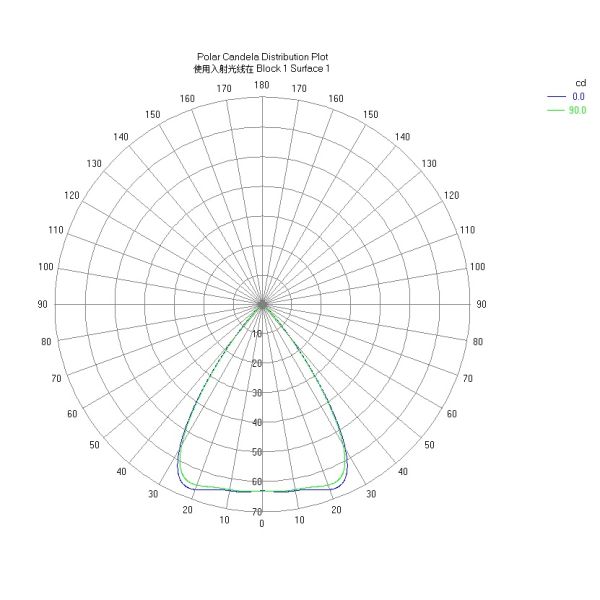

70x70 degree Led Street Light Lens Distribution:


Features :

  1. This SKD 28W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps , each Led could use as 1-3w , one module could be 28W or 56W.
  2. It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 60 Celsius degree.
  5. Optic lenses are available for projects that need smaller beam angles, like 70x140 degree , 65x135 degree.

Related High power Led Street Light Lens:


Model No.Lens angleLens size(L*W*H)PCB size(L*W*H)

SOE-SL28W-LM70x140


70x140°151.8*95.9*9.6mm132*75*1.6mm

SOE-SL28W-LM70X70


70X70°151.8*95.4*11.5mm132*75*1.6mm

SOE-SL28W-CR65X135


65X135°151.8*95.9*8mm132*75*1.6mm

28W Modules has a range of Street light and High bay light modules which have multiple lenses in a single array. Lens modules provide an easy and cost effective solution. All the Led modules are designed to allow modularization of light engines. They are also future-proof solutions allowing customers to easily adapt into latest generation of LEDs without compromising the design and performance of the luminaire.


Competitive Advantage:

1). Our High power led using high quality imported Bridgelux 45mil Led chip with LM-80 test.
2). CE driver, very easy for repair/replacement. We also could provide Meanwell Led driver.
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty



Application:

The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on
